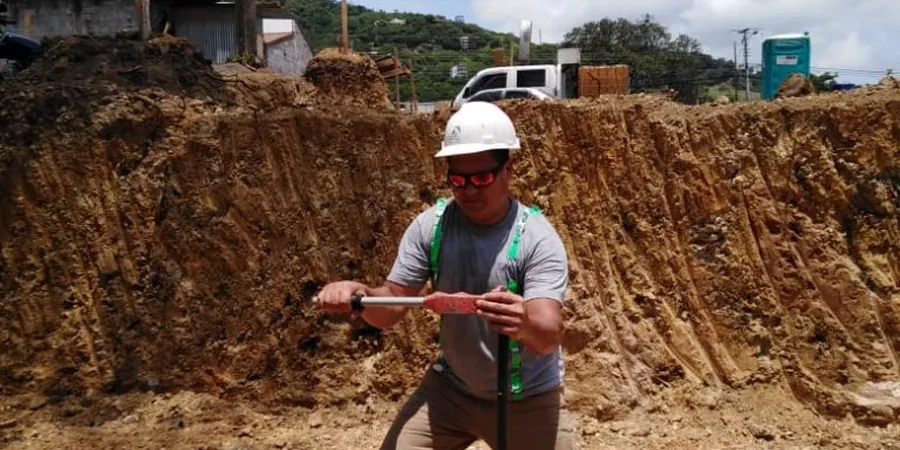

Las Vegas rose from a dusty railroad stop to a global resort destination in less than a century. That explosive growth built over ancient lakebeds that left behind layers of soft, compressible clay and silt beneath the desert surface. For any structure founded on those low-strength deposits, knowing the undrained shear strength is non-negotiable. The field vane shear test (VST) provides that critical parameter directly in the ground, without the disturbance of sampling. The test follows ASTM D2573 and is ideal for the saturated fine-grained soils found along the Las Vegas Wash and in older floodplain areas. Before designing shallow foundations or ground improvement, engineers here routinely request a VST campaign to avoid overestimating bearing capacity. The results also feed directly into slope stability analyses for the many cut-and-fill sites that dot the valley perimeter. Las Vegas relies on this in-situ method to make safe, cost-effective decisions on soft ground.
In Las Vegas alluvial clays, the vane shear test yields undrained shear strengths between 15 kPa and 80 kPa, values that directly control allowable bearing pressure and slope stability.
Service characteristics in Las Vegas
- Vane dimensions follow ASTM D2573: height-to-diameter ratio of 2:1, typical 75 mm × 38 mm for soft clays, 50 mm × 25 mm for firmer deposits.
- Torque measured via calibrated spring or electronic load cell with accuracy within 2% of applied torque.
- Test depth limited by rod buckling; maximum practical depth around 30 m in Las Vegas stratified clays.
Critical ground factors in Las Vegas
A real scenario: a five-story mixed-use building on South Las Vegas Boulevard, founded on 6 m of soft clay over medium-dense sand. The geotechnical report relied on lab triaxial tests from Shelby tubes, but the cores were disturbed by sand seams. The design shear strength was overestimated by 40%. After construction started, the foundation settled unevenly, cracking the ground-floor slab. The field vane shear test was run at four borehole locations to obtain undisturbed in-situ strengths. The actual Su was 28 kPa versus the 45 kPa assumed. The redesign required deep soil mixing to bridge the soft clay layer. That experience taught local engineers to always run a VST campaign before finalizing foundation design in the valley's soft zones. A falla-taludes analysis also benefited from the corrected strength profile, preventing a potential rotational failure in the adjacent parking ramp.
Our services
Beyond the standard field vane shear test, our Las Vegas geotechnical team offers complementary in-situ services that build a complete picture of soft ground behavior.
VST with Remolded Strength (Sensitivity)
After peak torque, rotate vane 10 revolutions at high speed and measure residual torque. This gives sensitivity St = Su_peak / Su_residual, critical for evaluating thixotropic behavior and potential strength loss during construction vibrations. Typical for lacustrine clays in Las Vegas.
Multi-Depth VST Profiling
Perform VST at 1-m intervals through the full clay stratum. The profile reveals strength variation with depth, identifying weak zones, desiccated crust, and overconsolidation effects. Essential for differential settlement analysis in strip malls and residential subdivisions.
VST in Boreholes with SPT Correlation
Combine VST with standard penetration test (SPT) in the same borehole. The VST provides direct Su for clays, while SPT gives N-values for sands. This dual dataset is the standard approach for mixed soil profiles common along the Las Vegas Wash.
Frequently asked questions
What is the typical undrained shear strength range for Las Vegas clays measured by VST?
In the lacustrine and alluvial clays underlying most of the Las Vegas valley, field vane shear tests typically measure undrained shear strengths between 15 kPa and 80 kPa. The upper range (60–80 kPa) occurs in the desiccated surface crust, while softer zones near the water table yield 15–30 kPa. These values are 30–50% lower than lab triaxial results on undisturbed samples due to sample disturbance, which is why the in-situ VST is preferred.
How does the field vane shear test differ from a lab triaxial test for clay strength?
The VST measures undrained shear strength in situ, at the natural water content and stress state, with minimal soil disturbance. A lab triaxial test requires undisturbed sampling (Shelby tubes), transport, and reconsolidation, which can alter the fabric and strength of soft clays. In Las Vegas clays, lab triaxial results often overestimate Su by 20–40% because of sample disturbance from sand seams and gas pockets. The VST gives a more conservative, reliable value for foundation design.
At what depth can the vane shear test be performed in Las Vegas?
Practical maximum depth is about 30 m, limited by rod buckling under torque. For deeper testing, the borehole must be cased to reduce rod unsupported length. In Las Vegas, the soft clay layers of interest rarely exceed 15 m depth, so the standard VST setup without casing is sufficient for most projects. The test can be performed at any depth where the vane can be advanced without refusal.
What is the cost range for a field vane shear test in Las Vegas?
The typical cost for a field vane shear test including mobilization, setup, and reporting ranges between US$560 and US$1,400 per test point. The variation depends on depth, number of points, site accessibility (casino backlots are more expensive than open lots), and whether remolded strength (sensitivity) is measured. For a standard 6-point campaign on a residential tract, budget around US$4,800 to US$7,200.
How long does a VST take per test point?
A single vane shear test, including vane insertion, peak torque measurement, and remolded strength determination, takes 20 to 40 minutes. Mobilization and setup add 30–60 minutes per borehole. For a typical 6-point campaign at a single site, the field work is completed in one day. The results are available as field sheets immediately, with final certified report within 48 hours.
